NDAN Nylon Drywall Anchors with Patented Reinforcement Nails | Medium Duty for Plasterboard & Insulation Wall, Anchor only, No Screws Included

NDAN Nylon Drywall Anchors with Patented Reinforcement Nails | Medium Duty for Plasterboard & Insulation Wall, Anchor only, No Screws Included

Sale Units
Quantity
$10.00
🚚 Free shipping, estimated delivery in 3–7 business days

✔ In stock
Shipping from: CANADA
Sold by: Magic Toggles
Returns: Eligible for Return, Refund or Replacement within 30 days of receipt

Buy from Amazon by unit
Buy from manufactory directly

Description

  • 1. Patented Reinforcement Nail Design: Features JMTM’s unique built-in reinforcing nail that locks the anchor in place when removing the screw. This patented solution prevents the common problem of traditional anchors pulling out, allowing easy screw removal without wall damage.
  • 2. Made from high-strength glass fiber reinforced nylon. Designed for medium to heavy loads with #8 pan head self-tapping screw, providing reliable and secure fastening in hollow walls. Tested to deliver an ultimate tensile strength of 226N (23 kg) and shear loading up to 606N (61.8 kg).
  • 3. Universal Compatibility: Perfect for 9-16mm plasterboard, rock wool, glass wool, and foam insulation boards. Ideal for mounting shelves, mirrors, picture frames, and other wall fixtures.

View full details

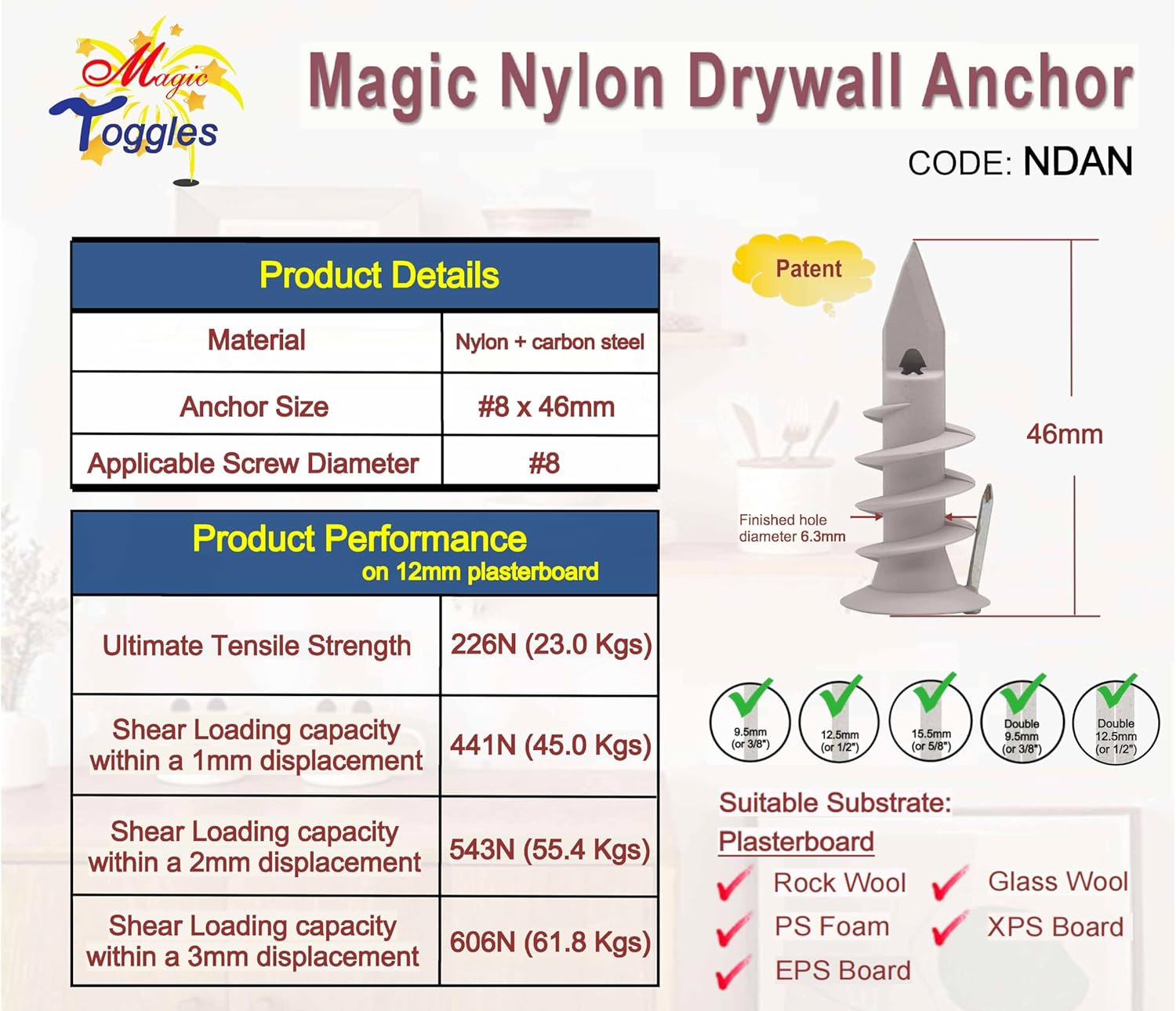

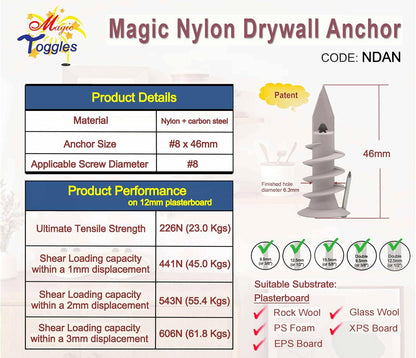

Product Information

Part Number NDAN
Material Nylon + Steel
Drywall Thickness 8~mm
Required Cavity Depth 38mm
Max Fixture Thickness ~35mm
Screw Size #8 x 45mm(PH#2)
Pre-drilling Required Self-drilling
Power Tool Compatible Yes
Suitable Applications Ceiling / Mineral Wool / XPS
Pull-Out Strength 265N (12mm Drywall)
Shear Load @ 1 mm Displacement 439N (12mm Drywall)
Shear Load @ 2 mm Displacement 525N (12mm Drywall)
Installation Difficulty AA

Features

Nylon Drywall Anchor – Superior Grip for Secure Screw Installation & Removal

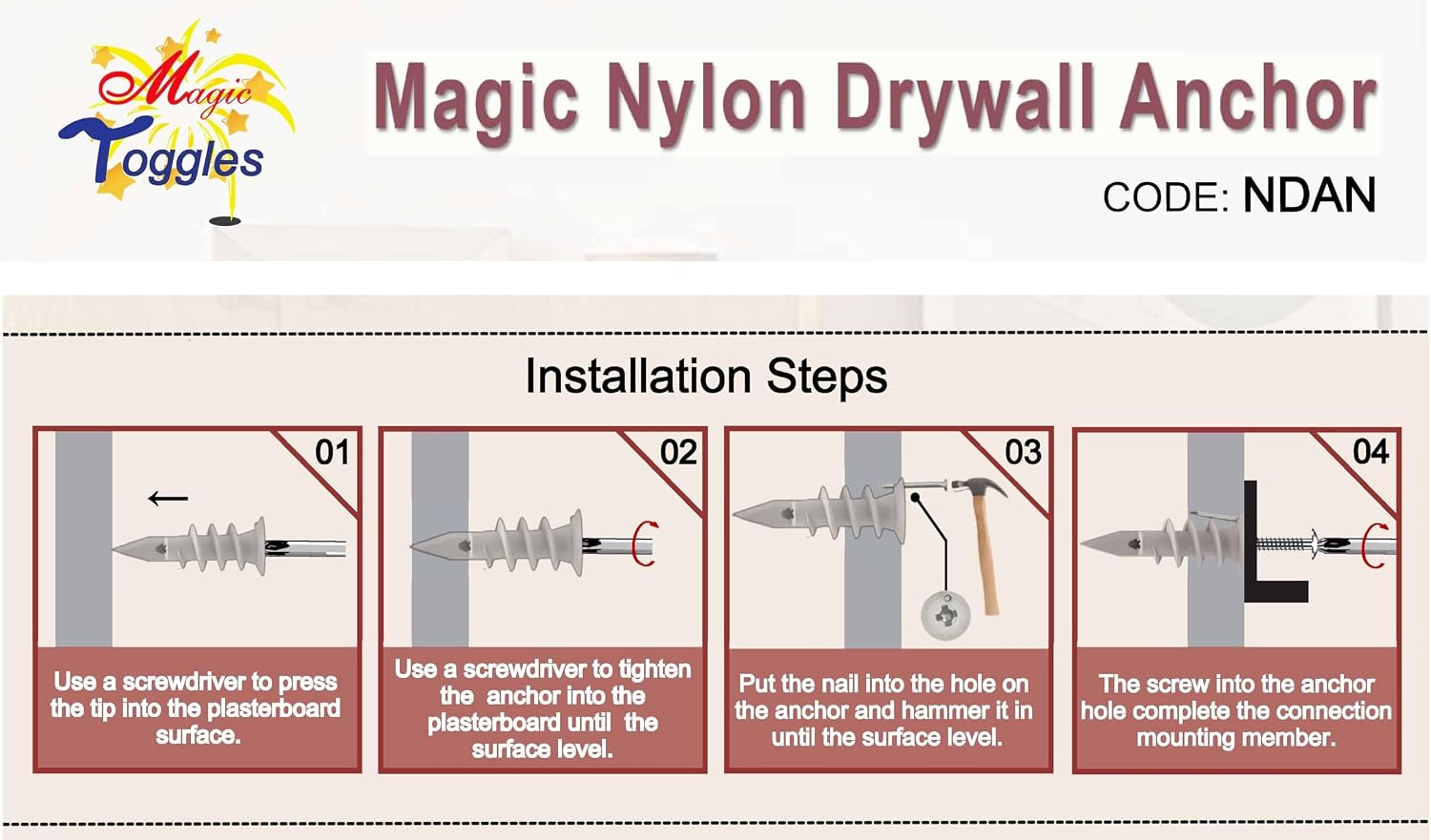

The NDAN is a reliable medium-duty drywall anchor designed for secure mounting in hollow walls. Made from durable glass-fiber reinforced nylon with a patent-pending reinforcing nail, it stays firmly in place even when you remove the screw. This package includes anchors and reinforcing nails only. #8 screws are not included. Key Features: Strong holding power: Tested up to 23 kg tensile strength and 61.8 kg shear load on 12mm plasterboard Works with #8 pan head screws (recommended size: #8 x 46mm) Suitable for 9.5mm–16mm plasterboard, fiber cement board, rock wool, glass wool, and foam insulation boards Unique reinforcing nail design prevents the anchor from pulling out when removing screws Easy self-drilling installation – no power tools required Simple 4-Step Installation: Press the sharp tip into the wall using a screwdriver. Twist until the anchor sits flush with the wall surface. Tap the reinforcing nail into the anchor. Insert your #8 screw to mount your fixture. Important Safety Notes: For static loads on vertical walls only Do not use on ceilings Not suitable for vibrating loads or heavy moving objects For ceiling or high-vibration applications, please use MagicToggles series

Nylon drywall anchor nail install manual

  • Manufacturer:Suzhou Litto Fastener Co., Ltd.
    Address:No.125 Songshan Road, Suzhou, China

    Part Number:NDAN

    Country of origin:China
