ZSM4B MagicToggles Self-Tapping Drywall Anchors with M4x58 Patented Screw - Heavy Duty Hollow Wall Fastener for Cabinet, Shelve,TV Mount,Mirror,Handrail,Artwork & Curtain

ZSM4B MagicToggles Self-Tapping Drywall Anchors with M4x58 Patented Screw - Heavy Duty Hollow Wall Fastener for Cabinet, Shelve,TV Mount,Mirror,Handrail,Artwork & Curtain

Sale Units
尺寸
Quantity
$11.00
🚚 Free shipping, estimated delivery in 3–7 business days

✔ In stock
Shipping from: CANADA
Sold by: Magic Toggles
Returns: Eligible for Return, Refund or Replacement within 30 days of receipt

Buy from Amazon by unit
Buy from manufactory directly

Description

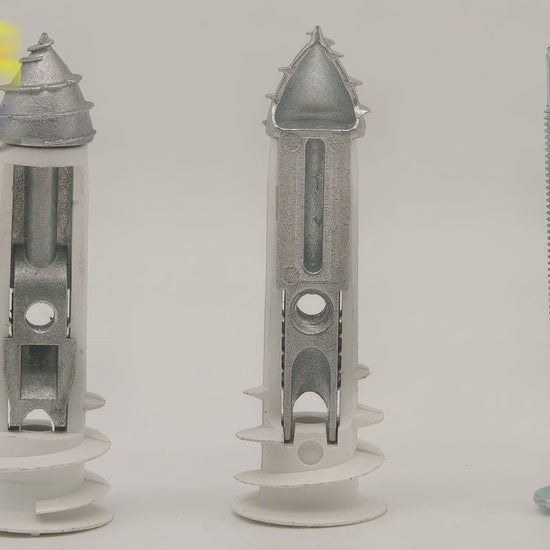

  • [100% SUCCESSFUL INSTALLATION] The patented screw features a special reverse thread tip. This ensures the zinc alloy toggle flips 90 degrees in any orientation under pushing force, allowing the screw to smoothly enter the internal thread for a guaranteed, flawless installation.

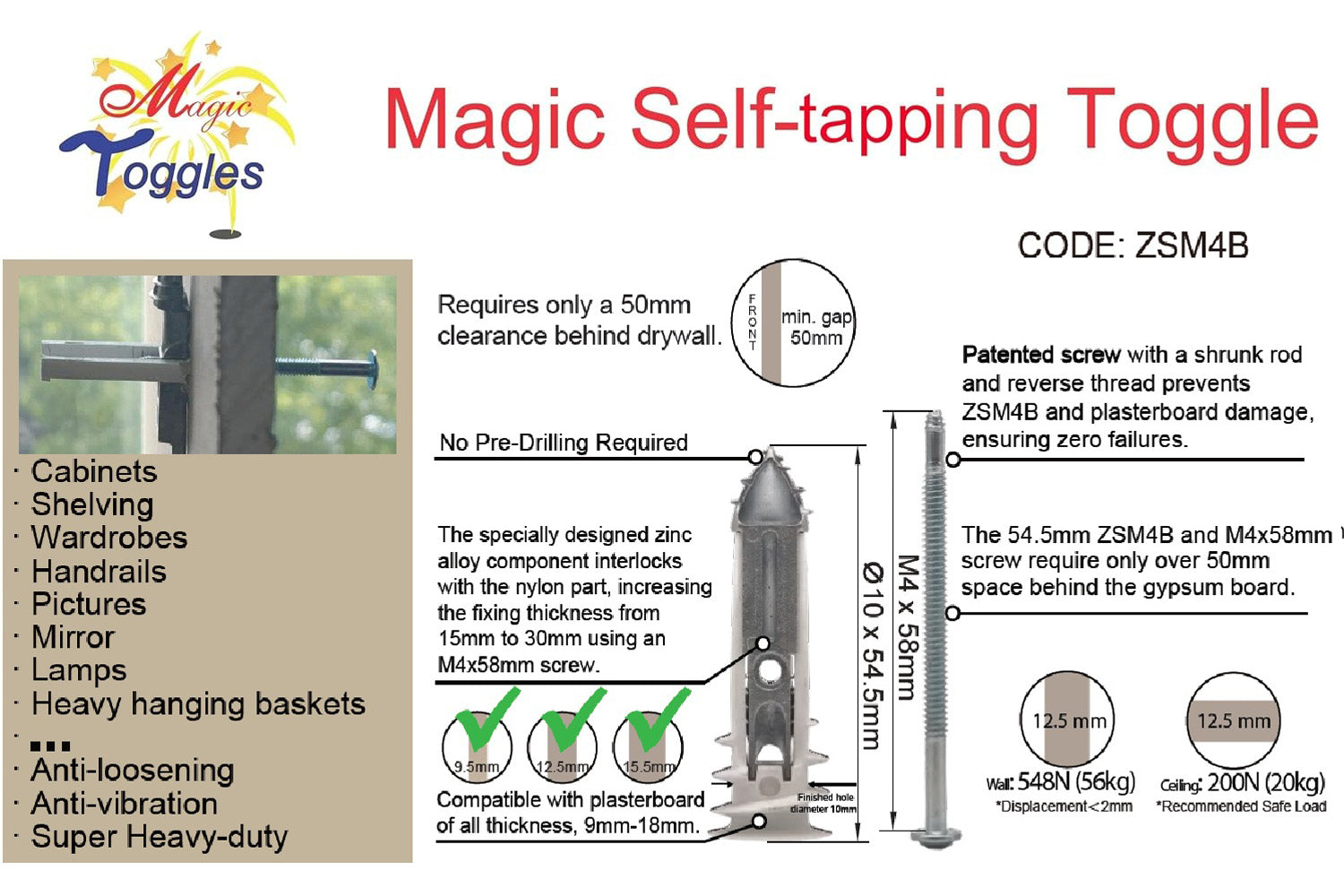

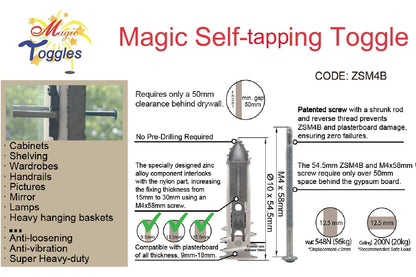

  • [EXTENDED CLAMPING THICKNESS] A patented white plastic component securely locks the flipped metal toggle in place. Paired with the 58mm screw, this breakthrough design doubles the clamping thickness capacity from a standard 15mm up to 30mm.

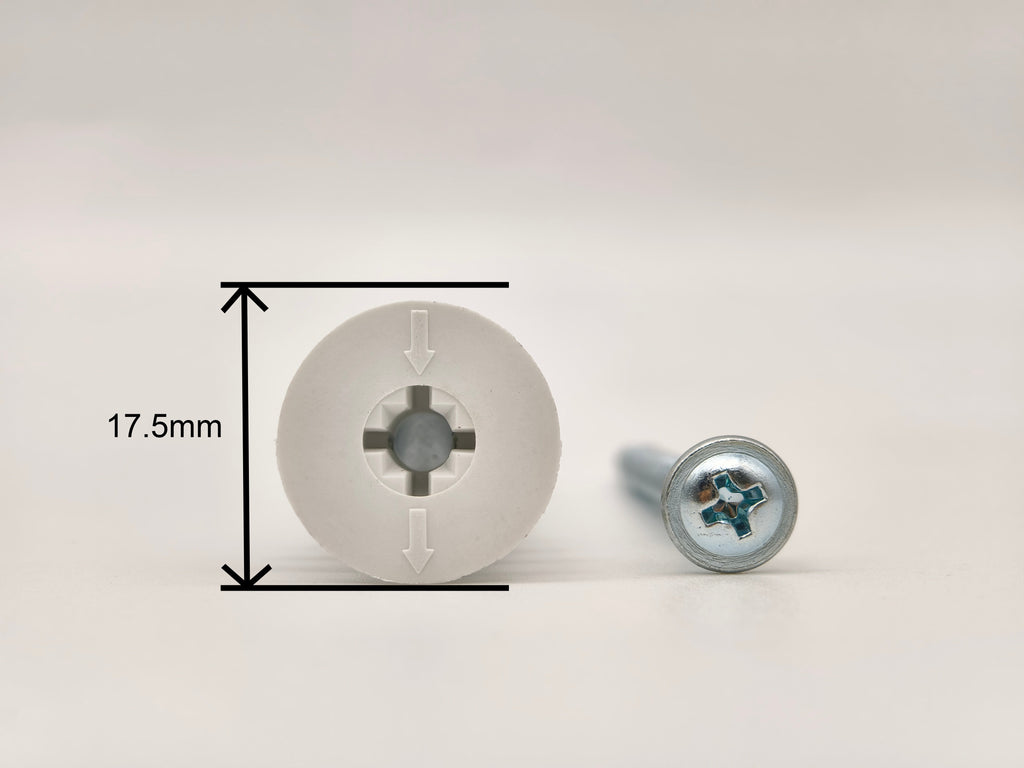

  • [SMART ALIGNMENT SYSTEM] Intuitive arrows on the white head indicate the metal toggle's orientation behind the wall. Align parallel to wood studs to avoid obstructions, or keep arrows parallel for closely spaced anchors. Easily micro-adjust with a manual screwdriver before final tightening.
  • [EASY START & TOOL OPTIONS] Simply press the metal tip 1-1.5mm into the drywall to begin. Install effortlessly with a standard manual screwdriver or low-speed drill. An impact driver can also be used to greatly accelerate efficiency (requires skilled operation).
  • [NO PRE-DRILLING & DAMAGE-FREE] The self-drilling zinc alloy tip entirely eliminates pre-drilling and prevents structural damage to the anchor or drywall. Note: Avoid use on gypsum boards with internal insulation to ensure the toggle deploys freely for maximum load-bearing safety.

View full details

Product Information

Part Number ZSM4B
Material Nylon + ZAMAK
Drywall Thickness 9-18mm
Required Cavity Depth 50mm
Max Fixture Thickness ~15mm (Smart lock ~30mm)
Screw Size M4 x 58mm (PH#2)
Pre-drilling Required Self-drilling
Power Tool Compatible Yes
Suitable Applications Ceiling
Pull-Out Strength 502N (12mm Drywall)
Shear Load @ 1 mm Displacement 486N (12mm Drywall)
Shear Load @ 2 mm Displacement 745N (12mm Drywall)
Installation Difficulty AAa

Features

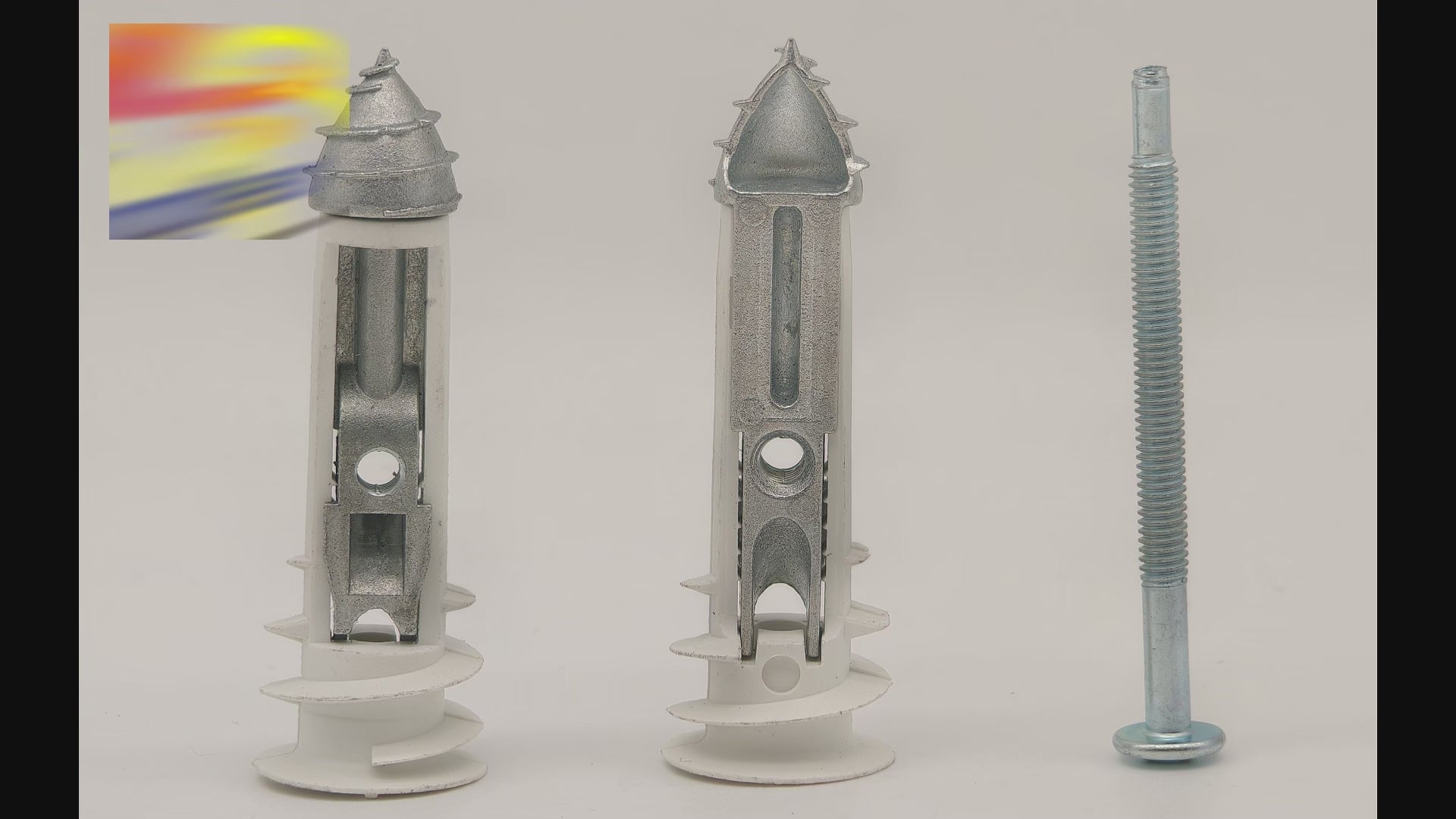

ZSM4B Self-Tapping MagicToggles

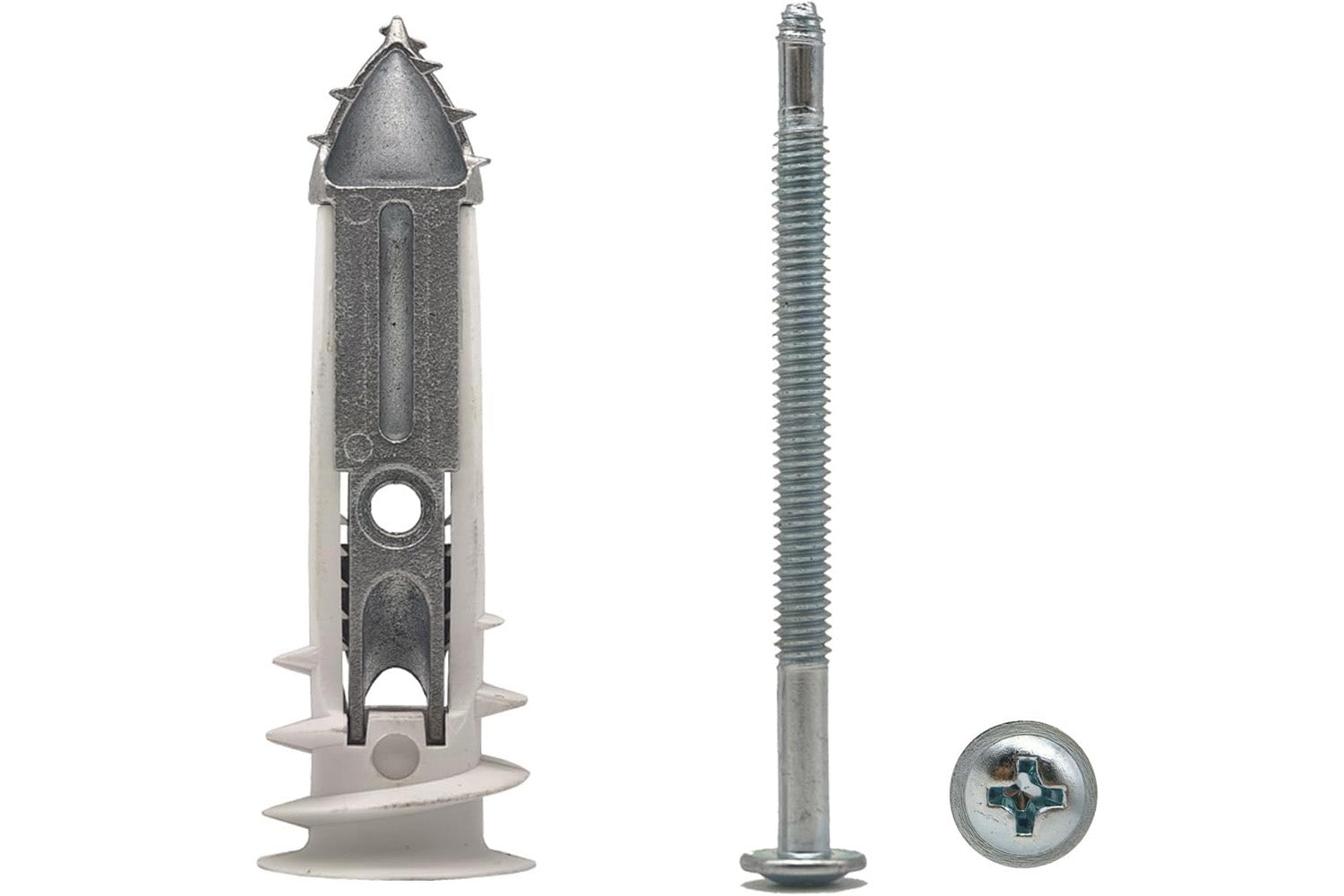

The ZSM4B MagicToggles provide a secure, long-lasting solution for mounting heavy items on hollow walls and ceilings. Built with a premium fiberglass-reinforced nylon body and a heavy-duty zinc alloy toggle, these anchors are engineered to handle high-stress applications without loosening or vibrating out of place.

Whether you are a professional outfitting a commercial space or a homeowner hanging a heavy mirror or TV mount, the ZSM4B ensures your fixtures stay exactly where you put them. Compatible with 9mm to 18mm thick drywall and requiring only 50mm of rear clearance, they are the ideal hardware for cabinets, handrails, shelving, and heavy hanging baskets and Curtains, towel racks, and tissue holders that bear dynamic loads, etc.

Specifications:
Wall Safe Working Load: 56kg (548N)
Ceiling Safe Working Load: 20kg (200N)
Drywall Thickness: 9mm – 18mm
Required Wall Clearance: 50mm
Included Screw: M4 x 58mm Zinc-Plated Carbon Steel

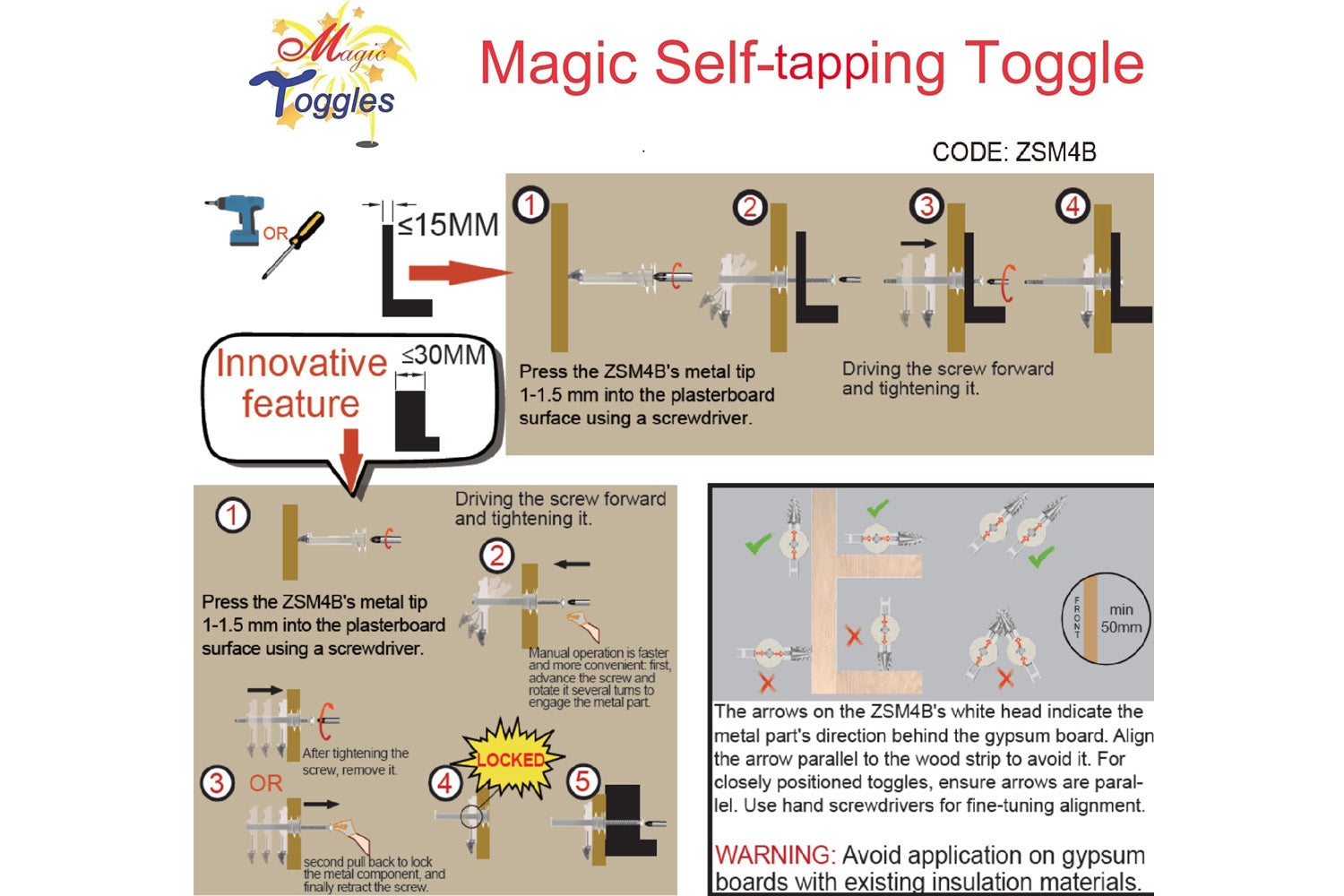

ZSM4B Installation Guide for Various Applications

UNIVERSAL COMPATIBILITY: The ZSM4B is suitable for all types of drywall, including mold-resistant and waterproof reinforced boards, as well as fiber cement board.

  • Manufacturer:Suzhou Litto Fastener Co., Ltd.
    Address:No.125 Songshan Road, Suzhou, China

    Part Number:ZSM4B

    Country of origin:China
